DT-2001 PLC Demonstrator Trainer
- DT-2001 is a versatile & most comprehensive demonstrator setup to perform unique and hands-on training experiments related to PLC.
- The Pico family of Nano PLCs from Allen Bradley, are Smallest & Most Economical Controller.
- They offer Performing Simple Logic, Timing, Counting & Real Time Clock Operations.
DT-2001, is built around Allen Bradley's PICOLOGIX.
- Built in power supply (24V DC).
- Input Voltage Category (24 VDC)
- Memory Size: 512 Instructions
- 6 Digital Inputs for Input Interface (Max 24 VDC)
- 4 Relay Outputs for Output Interface
- High Speed Counter
- 16 internal bits for intermediate data storage.
- 8 real-time clock instructions.
- 16 analog compare instructions
- 16 text display screen.
- SPDT Switches are used to simulate the PLC Input
- 4 Soft Inputs controlled by the On-Board Keypad.
- High Quality 10mm LED's are used to simulate the PLC output.
- Highly accurate Circuits are used to generate this for Instrumentation purposes, usually using a quartz crystal oscillator within a sealed temperature-controlled chamber known as a crystal oven or OCXO (Oven Controlled Crystal Oscillator).
- I/O interfaces allow the user to send information to the Frequency Counter and receive information from the Frequency Counter.
- Commonly-used interfaces include RS232, USB, GPIB and Ethernet.
- Documentation includes User Manual with details
- Cable & connector set available for interfacing.
- Suitable software & PC Interface options are also available
DT-3001 : Motor Trainer Kit

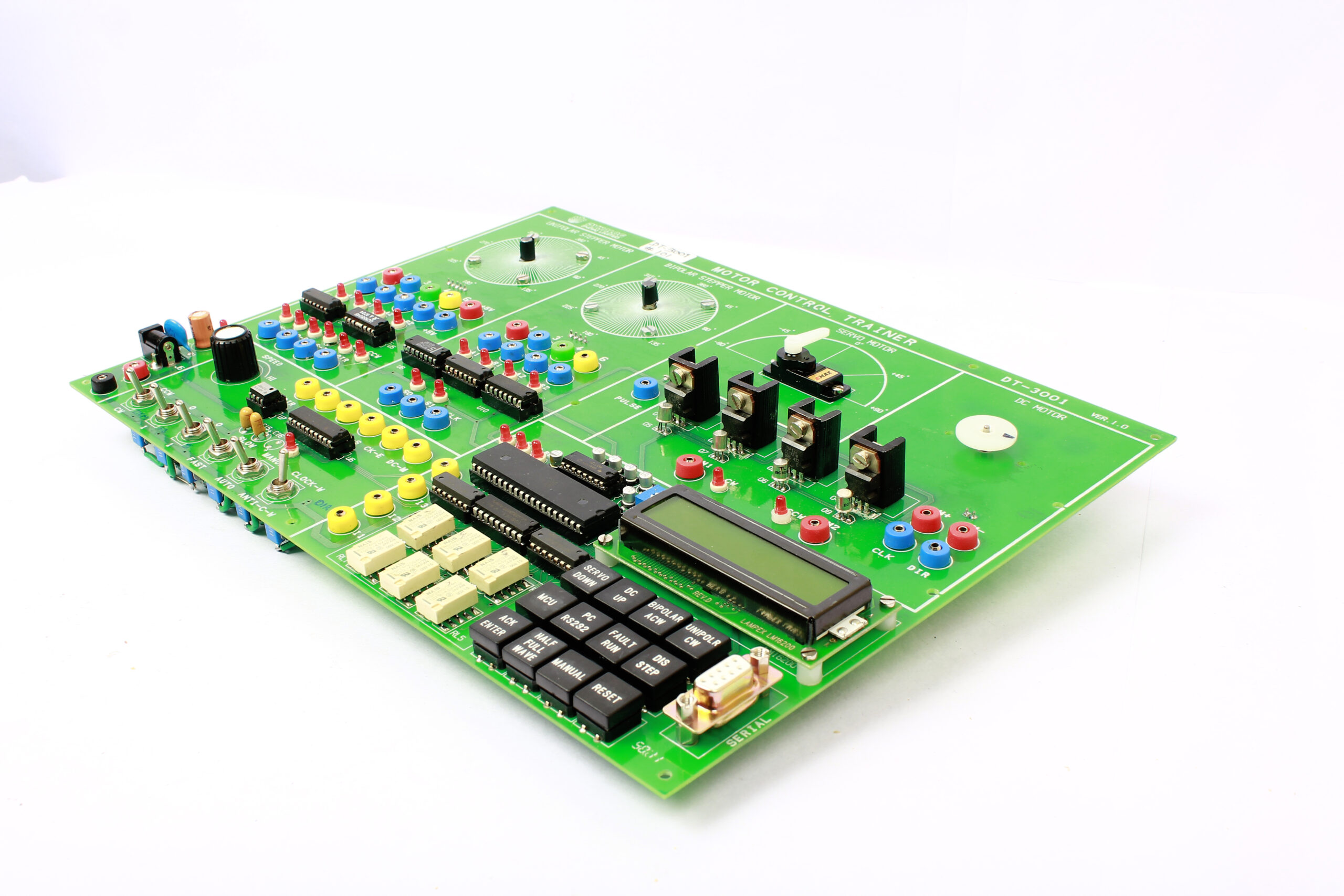

- DT-3001 is a versatile & most comprehensive setup to perform unique and hands-on training experiments in Motor Control Training.
- Unique, First-in-Class, Micro controller &/or PC based experiment techniques.
- Onboard AT89C51RC micro controller with 32K bytes of ROM & 512 Bytes RAM.
- Onboard Uni-polar Stepper Motor, Bipolar Stepper Motor, Servo Motor & DC Motor
- On board RED LEDs for Motor phase Indication, Direction and Mode Indications.
- 16x2 LCD Display & 4X4 matrix keypad to display & control parameters in local mode operations.Three Modes of operation: MCU, PC, Stand Alone.
- SPDT Switch is used for in Stand Alone Mode;
- Mode selection (HALF, FULL and WAVE),
- Speed Controlling, and STEP & RUN Mode Selection.
- On board Auto & Manual Clock available.
- On board RS232 Serial Communication.
- Onboard Jack for use with 5V adapter
- Utilize a Stepper Motor for Positioning Control.
- Encoder's application in stepper motor control
- Utilize a Potentiometer module for stepper motor's Positioning Control
- Pulse Frequency, Pull-in Torque Characteristic.
- Self Starting & Accelerating-Decelerating Zone.
- Encoder in the stepper motor CLC
- Potentiometer in stepper motor's control
- Step Counting on Particular Modes
- DC Motor Speed & Direction Control
- Servo Motor Angle Selection
- Supplied in attractive Wooden enclosure.
- Documentation includes User Manual with details
DT-4002 : Transducer Trainer for Motion, Sound & Force
The Instrumentation trainer introduce student to input sensors, output
sensors, signal conditioning circuits and display devices through a wide
range of hands-on practical activities.
This self-contained trainer has all the necessary resources on board to
perform various experiments.
INPUT TRANSDUCERS:
Linear variable differential transformer.Linear variable capacitor, Strain gauge Humidity Sensor ,Dynamic microphone, Ultrasonic receiver.
- OUTPUT DEVICES:
Buzzer
Relay
Solenoid
Loudspeaker
Ultrasonic Transmitter
Bargraph voltage indicator
Analog 10V Center-zero meter - SIGNAL CONDITIONING:
Signal conditioning Amplifiers,
Comparator
Oscillator & filters,
Mathematical Operation.
- POSITIONAL RESISTANCE TRANSDUCERS:
- Distributed Control Training Systems
Carbon Potentiometer
Wire wound potentiometer
Slide potentiometer
Wheatstone Bridge - External Power Supplies:
-5V, +5V 1A precision supply
-12V, +12V 1A regulated supply - On board power supply terminals
- User manual Included
- Supplied in attractive enclosure.
