Dyna 51 ( Advance Trainer Kit ):
Specifications :
- High Performance 8031/51 MCU @ 12 MHz.
- 32 K Onboard Program Memory.
- Powerful monitor software with Standard Commands like Move, Fill, Display /Modify Memory / Registers, Execute Program, Upload / Download etc.
- Cable & Connector set available for interfacing.
- 12 KB Battery Backed up User Program Memory, 16 KB Battery backed up User Date Memory.
- 48 Parallel IO lines from Two 8255 are brought out on separate FRC connector.
- Serial I/O through 8250 USART,with on-board level shifters 1488 & 1489, brought out on a 9 bit D type Connector.
- On board 8253 Time/ counter cip. Out of 3 Channels of Timer/ counter Two Channels are totally available to the user through a 7 pin relimate Connector.
- 8259 Interrupt Controller Provides 8 Prioritized interrupt Levels.
- All 8031/S1 bus Signals terminated on 50 Pin FRC Connector.
- All Dyna Study & PIO Cards are supported by this trainer kit.
- Switch Mode Power Supply : +5v 3A, +12v 1A, -12v 0.5A
- On board 40*2 LCD interface options. On board 40*2 LCD display & connector for 104 Key Standard PC compatible Keyboard.

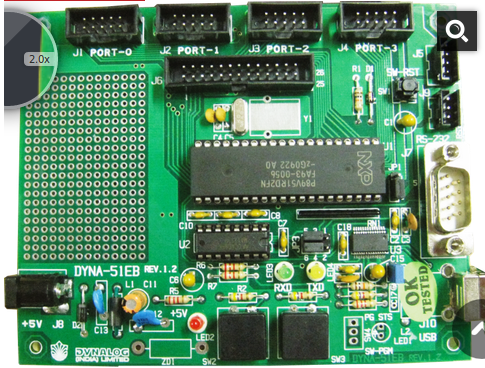

Dyna -51 EB (Evaluation Board ) :
Specifications :
- All 8031/51 bus Signals & PORT I/O Lines are bought out on FRC Connectors.
- Documentation includes User Manual with details.
- A new series of interface cards have been specially designed for Dyna-51 EB to suit curriculum requirements.
- Entry Level Evaluation board for 8051 MCU's.
- High performance 89 V51Rd2 MCU @ 12 MHz.
- 64 KB of On Chip Flash User Code Memory with ISP and IAP.
- Four 8-bit I/O ports with three high current port 1 pins (16 mA each).
- Eight interrupt sources with four priority levels.
- Low Power modes: Power-down mode with external interrupt wake-up& Idle mode.
- PCA with PWM and capture /compare functions.
- RS 232 Port is provided for Serial Interface.
- On Board Prototype area for user Development
- Serial Port is provided for Program Downloading.
- Program Downloading using Flash Magic Software.
- 64 KB of On chip Flash User Code Memory with ISP and IAP.
- Supports 12 clock default of 6 clock mode selection via software of ISP.
- Eight interrupt sources with four priority levels
Arduino Starter Kit :
Our Arduino Starter Kit consists an Arduino board along with various
types of input output devices to learn and perfrom experiments. It
includes components like LED, switch, relay, Bluetooth module, IR, LDR,
Ultra sonic, PIR motion, Temp and Humidity, Gas, Sound sensors etc
Partial List of Experiments / Projects:
- LED, Switch, IR Sensor, Relay Interface with Arduino.
- Bluetooth interface with Arduino Android app controlled devices
- Motion Sensor, Light sensor interface with Arduino.
- Sound sensor interface with Arduino.
- Ultrasonic sensor interface with Arduino.
- Voice controlled LED on/off.
- Voice controlled home automation.
- Light dependent switch
Multi Controller Trainter Kit :

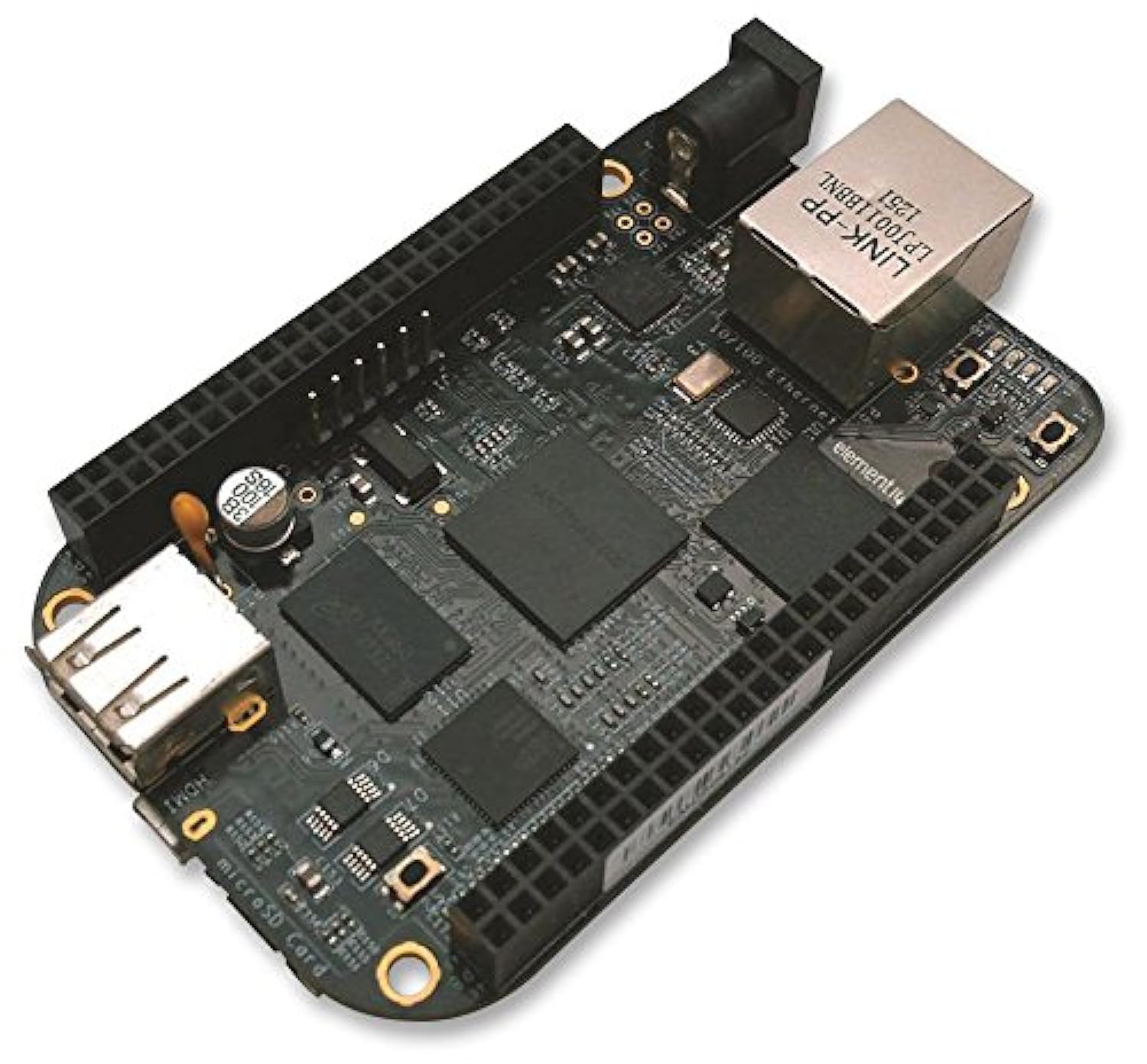

Beagle Bone Black Trainer :
