DYNA-BET ( BASIC ELECRONIC KIT) :
Specifications :
Our Basic Electronic kit consists all types of basic electronics components. Student can understand all electronic components concepts and can do all hands on practical and mini projects using basic components. This kit consists of Regulator IC 7805, 7809, 4 types of switches (Toggle, tactile, slide, electronic), Resistors, capacitors (ceramic, electrolyte), Diode,potentiometer, DC Motor, Relay module, NPN transistor, PNP transistor, Musical IC, Buzzer module, IC 555, Light sensor, Temperature
sensor and Speaker.
There is provision to add extra sensor modules & extra components as
needed in different projects.
Partial List of Experiments / Projects:
- To study different electronic components.
- To calculate value of resistance and verifying it using multi meter
- Continuity testing and glowing of LED.
- Working of diode as one way switch.
- Beeping the buzzer
- Varying the intensity of LED using potentiometer
- Turn on/off LED using LDR.
- Measuring current in circuit using multi meter and verifying OHM’s Law.
- Simple series connection of LEDs.
- Parallel combination of LEDs.
- Simple parallel connection of LEDs.
- Study of types of switches.
- Controlling LED using different switches.
- Understanding the logic AND gate using series combination of LEDs.
- Understanding the logic OR gate using parallel combination of LEDs.
- Light dependent switch
- AC light control using sensor
- Projects using IC 555 like- Timer, multi vibrator.

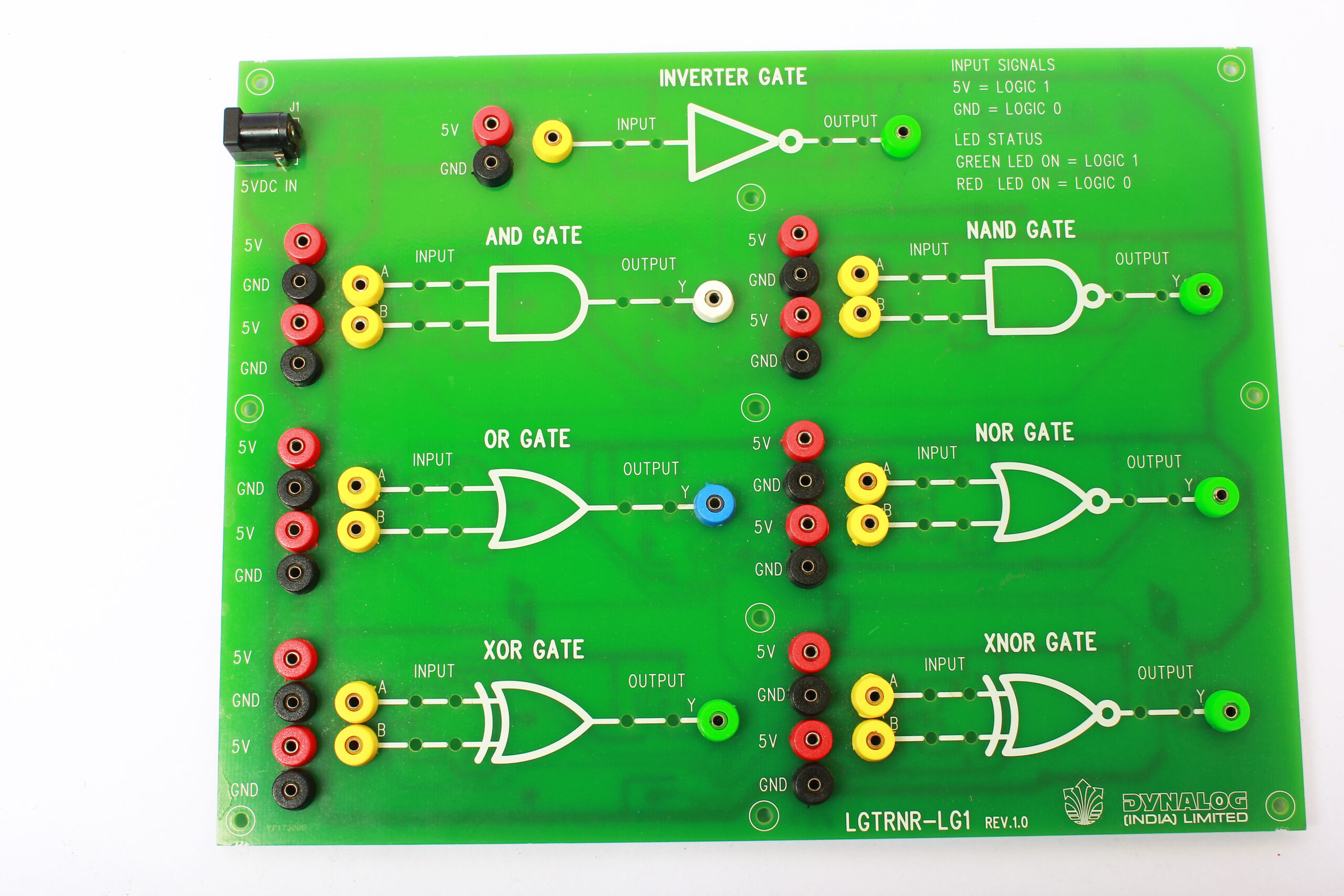

DT-1001 ( Basic Logic Gate ) :
Specifications:
This Trainer describes the AND, OR,NOT, NAND, NOR, XOR &XNOR gates in a very easy way.
The training system is designed in such a way that for performing any experiment is easy for students.
- Attractive input & Output indicators afe provided on trainer in such a manner so that multiple experiments can be performed simultaneously
- 3 mm Patch cords are provided onboard to perform various lab experiments.
- Documentation includes User Manual with details
- Dual color LED Indication for Logic low and Logic high TTL/CMOS logic Level for Inputs.
- Cable & connector set available for interfacing.

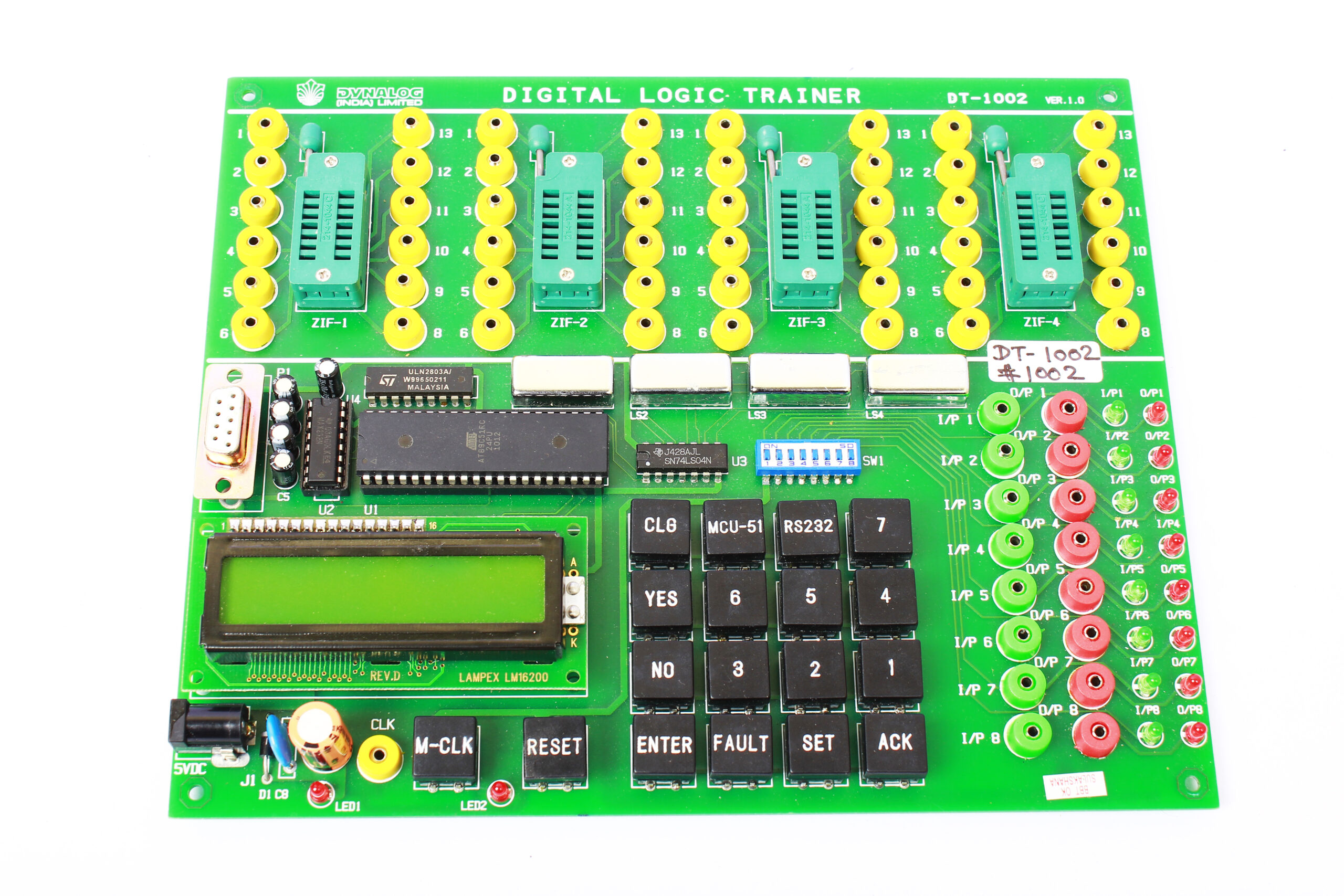

DT-1002 (Digital Logic Gate Trainer):
Specifications :
Versatile stand-alone training kit to perform unique and hands on training experiments in Digital Electronics.
- PC Based operations for fault insertion also possible.
- Onboard 16*2 LCD Display to display to all command actions.
- On Board dual color LED Indication.
- DC Power Supply: External 5 V
- On board 4*4 Matrix Keypad to control the operations.
- Verification of important TTL circuit Parameters.
- Unique, First-in-class, Micro controller based fault insertion facility, to help students learn diagnostic techniques.
- Basic Gates and verification of their truth tables.

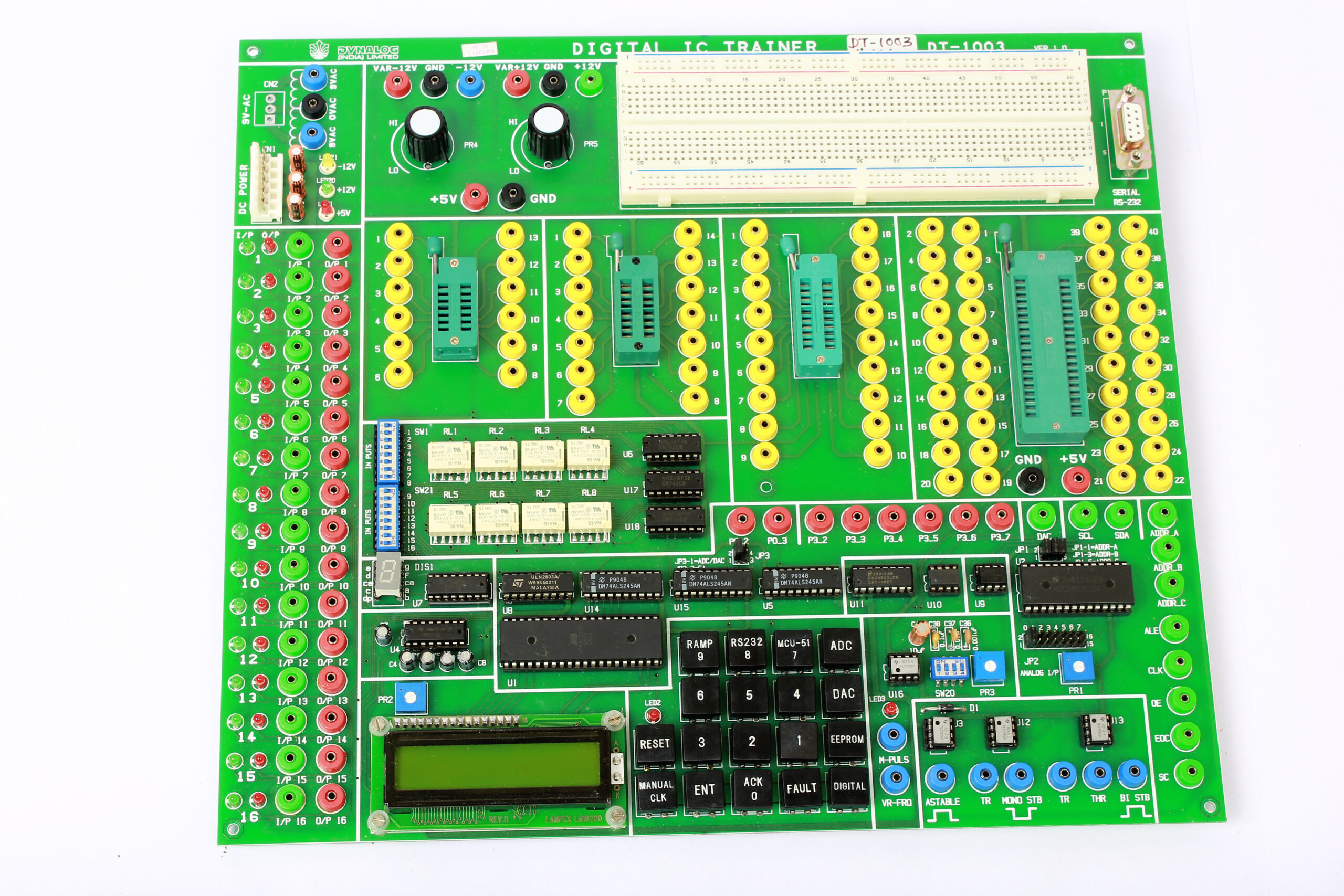

DT 1003 (Digital IC Trainer) :
Specifications: Multi-vibrators: To implement a variety of two state systems as Timers, Flip-floop, Oscillators.
- Bread Board : 2 Distribution Strip of 100 tie points each & 1 terminal Strip- of 630 tie points.
- Transformer Specifications: 15v / 15v / 9v /9v-0 - 9v / 500mA
- On board RS232 Serial Communication.
- Mode selection Using 4*4 matrix keypad.
- Logic Pulsar Provides Single Pole Double throw Bounce less Pulses of L-to-H, & H-to-L Transition.
- Documentation includes User Manual with details.

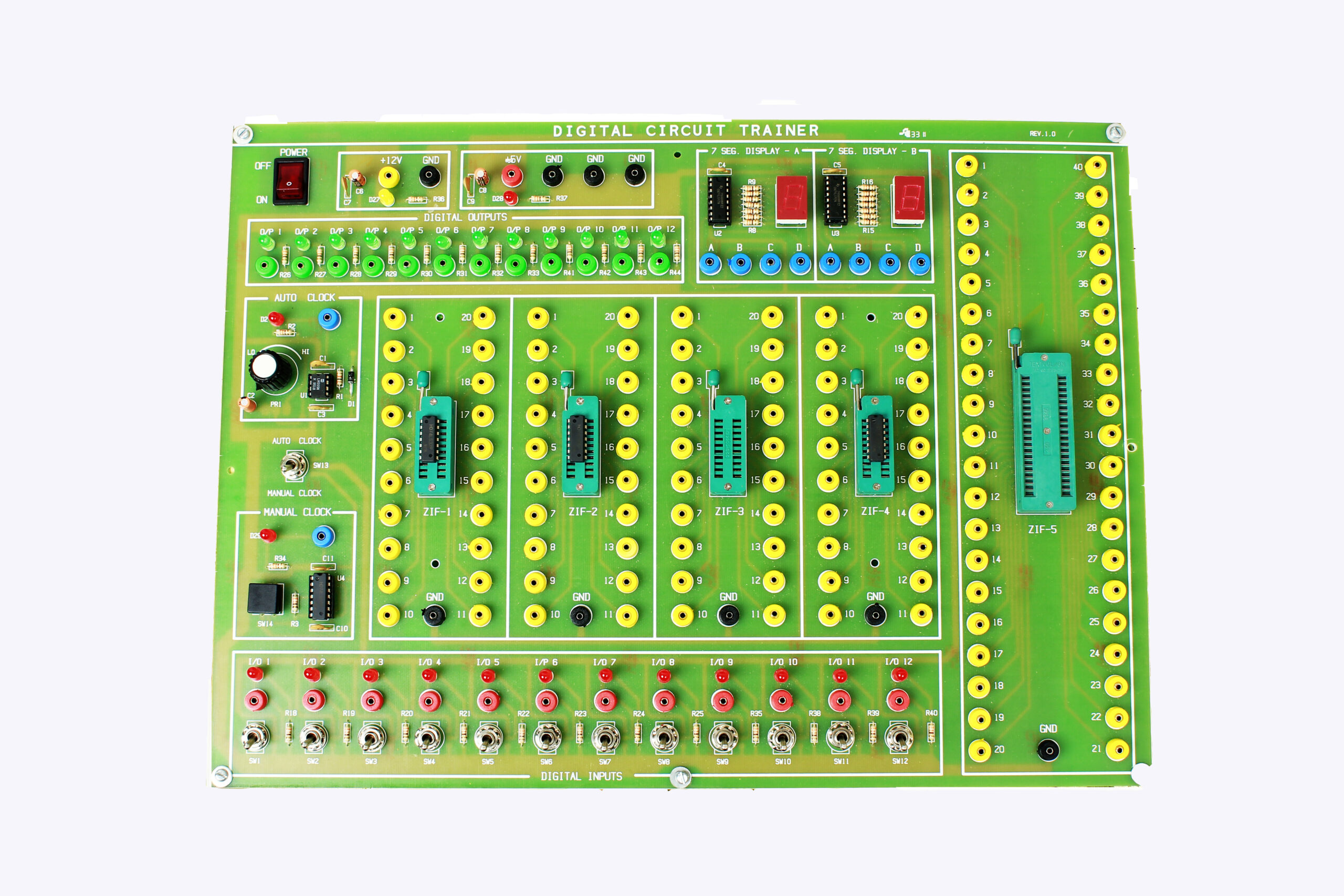

DT-1004 (Digital Circuit Trainer) :
Specification :
DT-1004 is a versatile stand- alone training kit to perform unique and hands-on training experiments in Digital Electronics.
- 12 Input / Output 5mm LED indicators.
- Toggle Switches for inputs
- Onboard four 20 PIN & One or Two 40 PIN Zif sockets to perform various operations.
- DC Power Supply : Internal Power supply with Specifications :
- Fixed DC Power Supply : + 5v, 1.5A / +12v, 500mA
- Input votage 230 V ac, 50 Hz
- On board Auto clock available.
- On board Manual clock available.
- Onboard fort PIN & One or Two 40 PIN ZIF sockets to perform various operations.
- Isolated test points available.
Separate GND & Vcc for each ZIF socket
- On board 2 Seven Segment Display
- Partial List of Experiments:
- Construction & Verification of Various typers of Combinational Circuits such as; Half Adder, Full Adder, Half Subtractor, Full Subtractor, Flip flops, Counters, Even/ Odd Parity Checker. Binary to Gray & Gray to Binary Converters.
- Verification of important TTL circuit Parameters.
- Basic Gates and verification of their truth tables ( NOT, OR, AND, NOR, NAND, EX-OR, NOR), TTL Terminologies.
DT-4004 (Signal Conditioning Trainer) :
Specifications :
The Instrumentation trainer introduce student to signal conditioning circuits through a wide range of hands-on practical activities. This self-contained trainer has all the necessary resources on board to perform various experiments. The bench-mounted trainer features the following circuits.
- Comparator with switchable hysteresis.
- Amplifiers with gain and offset control.
- Low pass filter with switchable time constant.
- Precision full-wave rectifier.
- Differential amplifier, Instrumentation amplifier.
- Alarm Oscillator with switchable latching.
- Power amplifier, Electronics Switch.
- Positional Resistance transducers
- Carbon & Wire wound Potentiometer
- Slide & Wheatstone Potentiometer.
- On Board power supply terminals.
- Supplied with documentation manual
- Supplied in Attractive Enclosure
- Objectives & Assignments :
- Positional Resistance transducers
- Wheatstone Bridge measurements
- Display Devices
- Control System characteristics.
